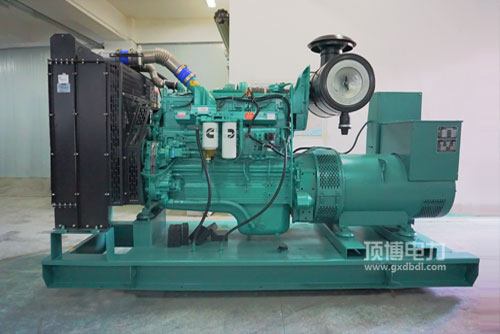

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打火机燃料经济能力性好: 好的燃料把握操作系统软件，才有的STC、ESTC 等级把握操作系统软件，个性化设计构思的气缸顶端一氧化碳发动机挥发室，超高压喷射式燃料，有力雾化吸入，一氧化碳挥发有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态性能参数高品质: 很好的发起机布局开发，结合康明斯现代感的EFC设计，管理精密度较高，崩溃时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用汽车发驱力升瓦数高: 总体设计的概念密集.自己的外观分布适当合理，作业趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50够满足在我国非之路第三方分阶段及中美洲Tier2. Tier 3排放量法律要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可知性好， 汽车发心理启用及运营维护养护方便快捷，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压时间范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯并网发电用热车机的基本特征：体型小， 再压缩变高， 集水管热空气升温，容易开机启动，联通车载一体机交流电源的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型号规格	实用输出(kW)Prime Power	自备效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
